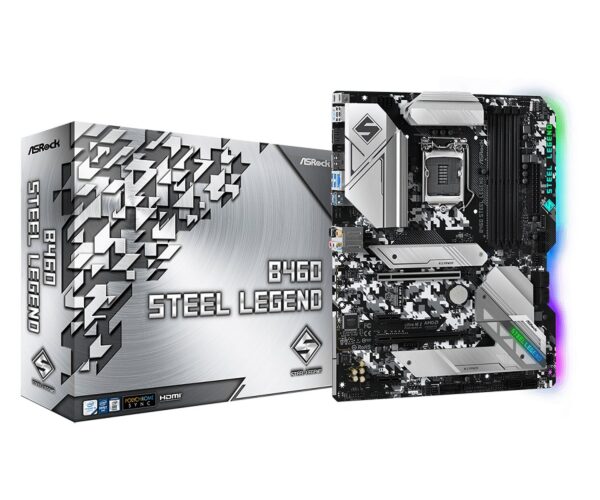

ASRock B460-Steel-Legend ATX Motherboard: B460 Socket 1200 For 10th Gen Intel processors 4x DDR4, 6x SATA 6bps, 1x M.2, USB3.2, HDMI, CrossFireX

B460 Steel Legend Supports 10th Gen Intel� Core� Processors (Socket 1200) 9 Phase Dr.MOS Power Design Supports DDR4 2933MHz 2 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 (Key E) For WiFi AMD CrossFireX� Graphics Output Options: HDMI, DisplayPort 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 Ultra M.2 (PCIe Gen3 x4) 7 x USB 3.2 Gen1 (1 Rear Type-C, 3 Rear Type-A, 2 Front, 1 Front Type-C) Dragon 2.5 Gigabit LAN ASRock Polychrome SYNC This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region. Specifications: Unique Feature ASRock Super Alloy – XXL Aluminum Alloy Heatsink – Premium 60A Power Choke – 50A Dr.MOS – Combo Caps (Nichicon 12K Black Caps) – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) – Shaped PCB Design – Matte Black PCB – High Density Glass Fabric PCB 2.5G LAN ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop CPU – Supports 10th Gen Intel� Core� Processors (Socket 1200) – Digi Power design – 9 Power Phase design – Supports Intel� Turbo Boost Max 3.0 Technology Chipset – Intel� B460 Memory – Dual Channel DDR4 Memory Technology – 4 x DDR4 DIMM Slots – Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory* – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 128GB** – Supports Intel� Extreme Memory Profile (XMP) 2.0 – 15� Gold Contact in DIMM Slots *Please refer to Memory Support List on ASRock’s website for more information. Core� (i9/i7) support DDR4 up to 2933; Core� (i5/i3), Pentium� and Celeron� support DDR4 up to 2666. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows� 32-bit OS. For Windows� 64-bit OS with 64-bit CPU, there is no such limitation. BIOS – 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – CPU Core/Cache, GT, DRAM, PCH, VCCST, VCCSA Voltage Multi-adjustment Graphics – Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1** – Graphics, Media & Compute: Microsoft� DirectX 12, OpenGL 4.5, Intel� Built In Visuals, Intel� Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 – Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft� PlayReady 3.0, Intel� SGX Content Protection, UHD/HDR Blu-ray Disc – Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers – Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz – Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) – Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports – Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports *Intel� UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. **VP9 10bit and VC-1 are for decode only. VP8 and VP9 encode are not supported by Windows� OS. Audio – 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) – Premium Blu-ray Audio support – Supports Surge Protection – 110dB SNR DAC with Differential Amplifier – PCB Isolate Shielding – Individual PCB Layers for R/L Audio Channel – Gold Audio Jacks – 15� Gold Audio Connector – Nahimic Audio LAN – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE Slots – 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)* – 2 x PCI Express 3.0 x1 Slots – Supports AMD Quad CrossFireX� and CrossFireX� – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module – 15� Gold Contact in VGA PCIe Slot (PCIE1) *Supports NVMe SSD as boot disks Storage – 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel� Rapid Storage Technology 17), NCQ, AHCI and Hot Plug* – 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** – 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** *If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. **Supports Intel� Optane� Technology (M2_1) Supports NVMe SSD as boot disks** Supports ASRock U.2 Kit Connector – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 2 x RGB LED Headers* – 2 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector (15� Gold Audio Connector) – 1 x Thunderbolt� AIC Connector (5-pin) (Supports ASRock Thunderbolt� 3 AIC R2.0 Card only) – 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Intel� B460) (Supports ESD Protection) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Intel� B460 ASMedia ASM1074 hub) (Supports ESD Protection) – 1 x Front Panel Type C USB 3.2 Gen1 Header (ASMedia ASM1074 hub) (Supports ESD Protection) *Support in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O – 1 x Antenna Bracket – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x Optical SPDIF Out Port – 2 x USB 2.0 Ports (Supports ESD Protection) – 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) – 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) Software and UEFI Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Instant Flash – ASRock Internet Flash – ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories – Quick Installation Guide, Support CD, I/O Shield – 2 x SATA Data Cables – 3 x Screws for M.2 Sockets – 2 x Standoffs for M.2 Sockets Hardware Monitor – Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans – Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans – Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans – CASE OPEN detection – Voltage monitoring: 12V, 5V, 3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCST, VCCIO, VCCSA Form Factor – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm OS – Microsoft� Windows� 10 64-bit Certifications – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
