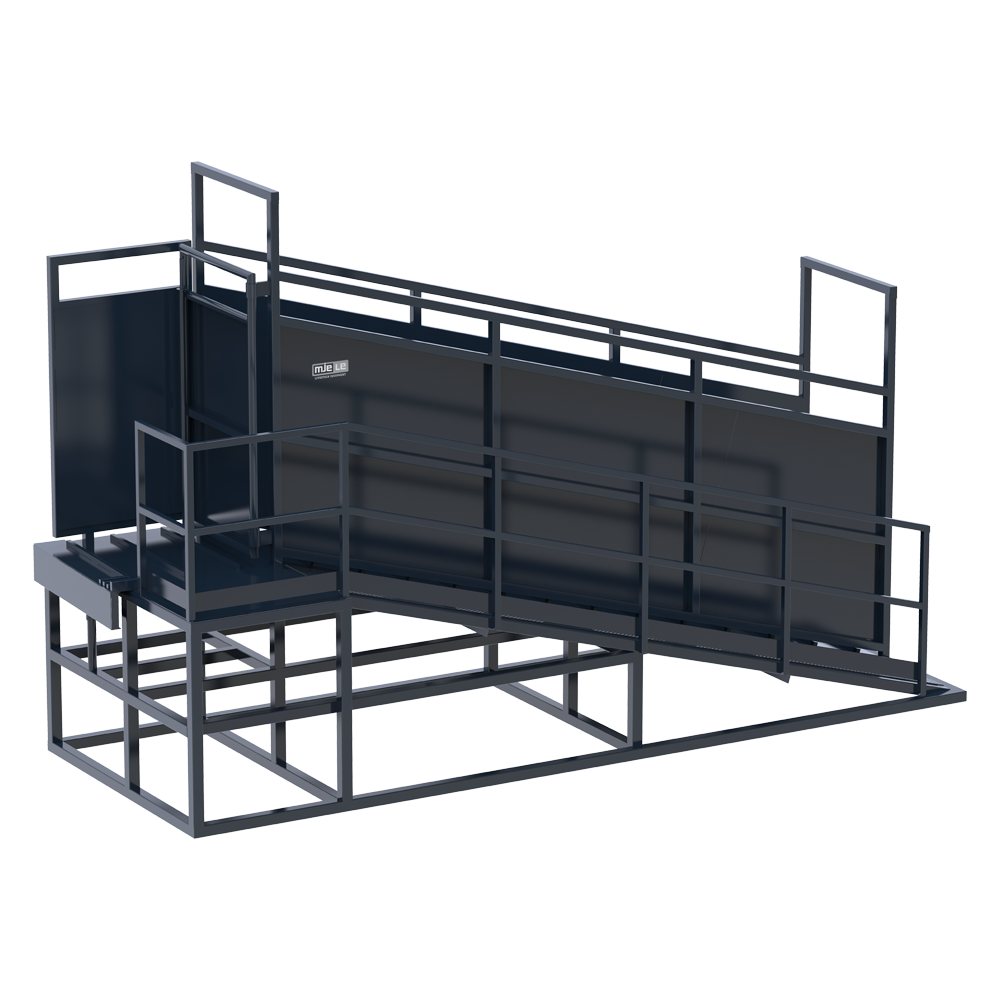

Description The 16′ long Elite loading chute will make loading and unloading a much safer job for you and your livestock. The heavy-duty frame is constructed from 3/15″ square tubing and a 3/16″ thick plate ramp with 1″ square traction crossbars. The sides are built with 11 gauge square tubing and 12 gauge sheet metal. This chute also features an access door at the top of the platform and a heavy-duty pivot plate on the front to allow for uneven backing. The 2′ wide catwalk is constructed from heavy-duty galvanized grip strut material and with an OSHA-approved handrail and toe guard on the side and front. The cattle ramp is 32″ inside. The Elite stationary loading chute measures 16′ L x 69 1/2″ W x 10’6″ T and weighs 3,180 lbs. Volume discounts are available. Prices subject to change.
